Roofline Performance

Understanding a system's performance in isolation is challenging; it's far more meaningful to compare against an established baseline or rigorous theoretical limits. For our analysis, we will use the Roofline Model. Its a powerful analytical framework that defines the maximum achievable performance of a given application on a specific hardware system. It works by first determining two key application characteristics: the required computational intensity (FLOPs) and the necessary memory transfers. For a given application and hardware, relates arithmetic intensity (FLOPs per byte moved) to the machine's peak compute and peak memory bandwidth. It tells you whether a kernel is compute-bound or memory-bound, and sets a clear ceiling on the performance you can expect on that system. For a concise introduction, see the NERSC guide to the roofline model. Further references will be provided at the end of this post.

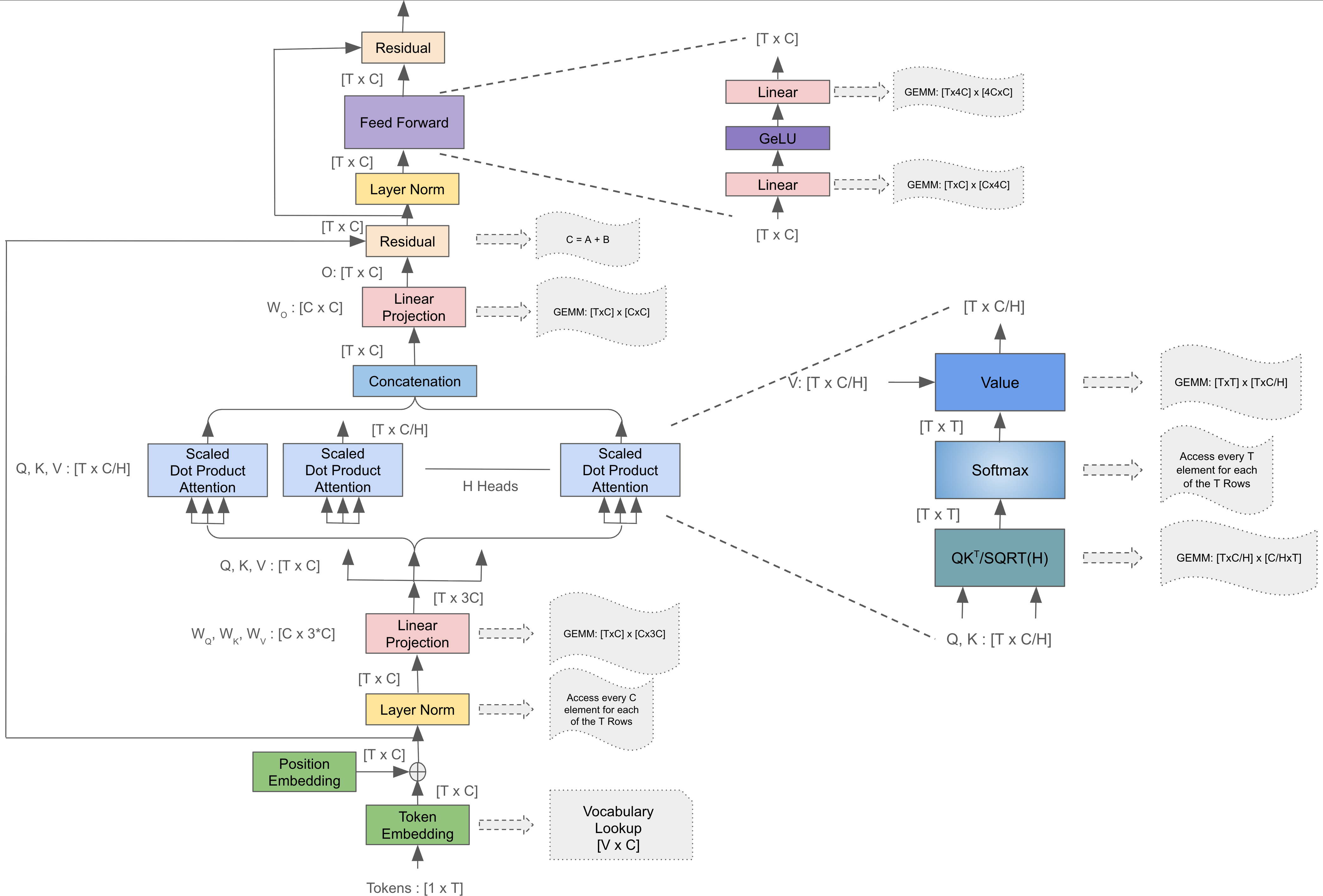

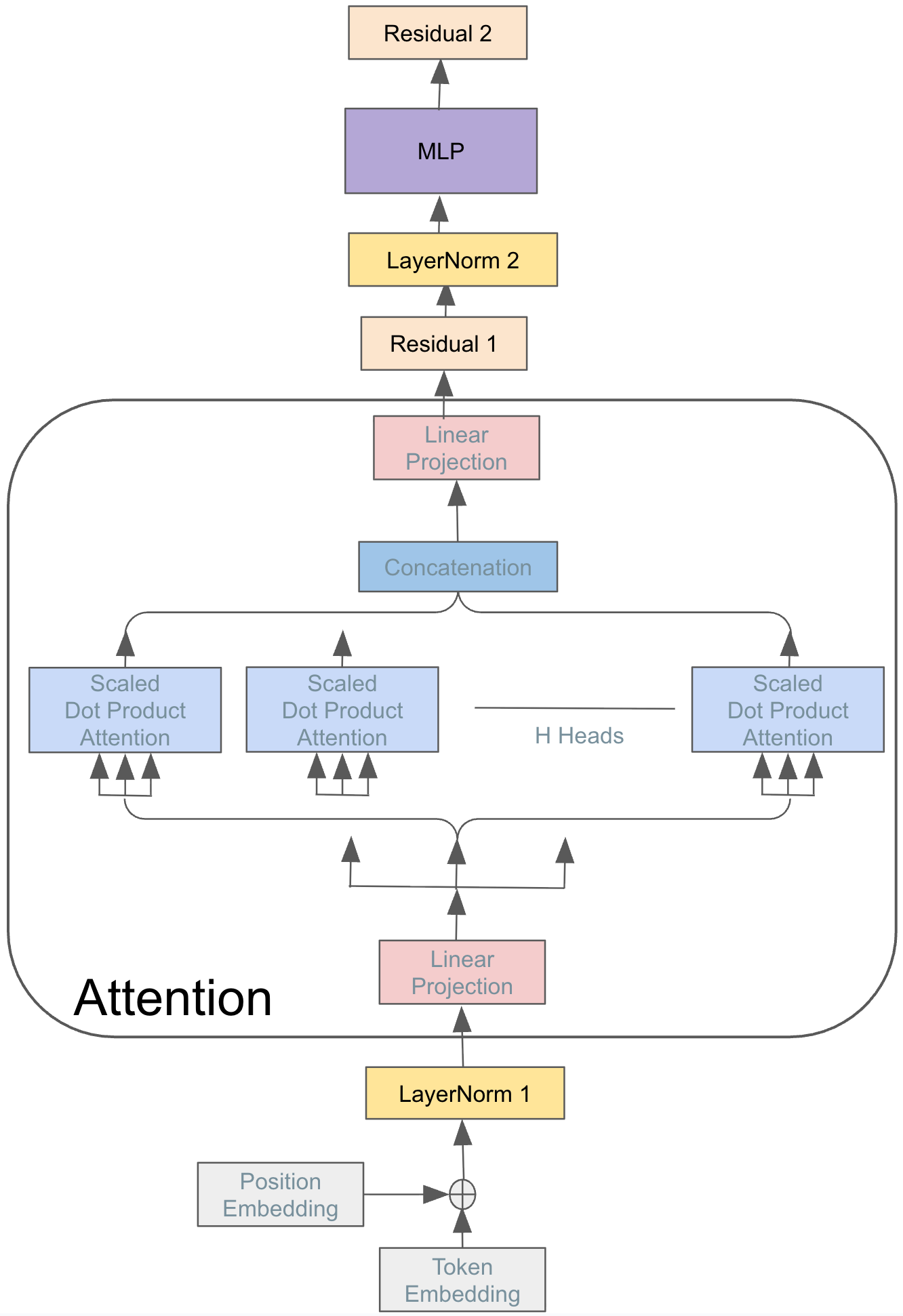

As we construct the roofline model for each sub-block in a GPT-2 layer, the first step is to quantify memory traffic. The table below enumerates the activation tensors (shapes and data types) produced and consumed by each sub-block;

Refer to the table below for a breakdown of the computations performed by each sub-block—including key operations and FLOP counts.

Using these two tables, we compute the arithmetic intensity (AI) for each sub-block, classify each as compute-bound or memory-bound, and then derive its roofline performance ceiling accordingly. On A100 SXM4 we use the folloiwng parameters of the device:

• FP32 FLOPS : 19.5 TFOPS
• TF32 FLOPS : 156 TFLOPS
• HBM2E BW : 1555 GB/s

As the compute bound GEMM operations can use Tensor cores, we provide the minimum execution time using TF32 and maximum time using FP32 FLOPS. The table below walks through these steps and reports the resulting roofline limits for all sub-blocks.

With our definitive Roofline Performance figures now established, we transition from theoretical limits to real-world measurement. We will examine the actual performance attained by both the LLM implemntations compare it against these theoretical ceilings to understand how closely each implementation approaches its roofline—and where performance gaps emerge.

Kernel Invocations

The kernel launch is the mechanism by which CUDA assigns computation tasks to the GPU's Streaming Multiprocessors (SMs) with a specified grid–block–thread configuration. Kernel launches introduce inherent overhead, and choices of grid/block sizes has profound impact on system performance, can either underutilize the GPU or add excess launch/scheduling overhead. This nuanced decision-making process is a craft—balancing occupancy, memory access patterns, and launch counts. Exactly why good GPU programmers are valued, and (yes) paid handsomely in today's AI industry and this blog will take you a step in that direction. Alright, enough of the sales pitch, back to the performance that matters. For readers interested in the intricate details, NVIDIA's GTC talks and CUDA performance guides walk through the trade-offs. The table below provides a direct comparison of the kernel launch behavior of the two implementations. Note that LLM-Eigen relies on Eigen as its backend, which translates high-level tensor operations into multiple kernel launches, whereas LLM-CCCL directly invokes CUDA kernels for each sub-block.

Comparing the forward pass implementations reveals a stark difference in kernel launch philosophy. It is immediately apparent that the LLM-Eigen version launches a significantly higher number of kernels, particularly within the Attention block. This discrepancy arises because the LLM-Eigen version relies on the Eigen backend, where mathematical operations are translated into a sequence of non-explicit kernel launches. In other words, the number of resulting kernels and their launch configurations (grid/block sizes) are highly dependent on Eigen's internal implementation and are not guaranteed to correspond to a single assignment. In contrast, LLM-CCCL fuses the sub-block's work into one global kernel per major range utilizing few helper kernels as needed. Lets dig deeper into its implementation of Attention to explain the large discrepency.

LLM-Eigen version's enormous 440 kernel launches in the attention stems from the factor that how the code is structured. It relies on nested loops (over sequence, heads) combined with fine-grained tensor operations. When coupled with per statement wise kernel launch the overall kernel count just blows up. In contrast, the LLM-CCCL expresses Attention using a single basic block of code that intelligently calls cuBLAS Batched GEMM to aggregate work across batches/heads into larger batched operations. The distinction, therefore, lies in fundamental design philosophy: the Eigen approach favors simplicity of expression (using standard C++ loops and libraries), whereas the CCCL approach favors maximum hardware utilization. With a batch size ($B$) of 4 and 12 attention heads ($H$), this design choice introduces a 48x iteration difference that significantly amplifies the total number of kernel launches as observed.

Below is the code snippet illustrating how the attention module is structured for both the versions:

// LLM-Eigen Attention Implementation
for (int b = 0; b < B; ++b)
{
    for (int h = 0; h < NH; ++h)
    {
        // Calculate QK^T
        nn::MatMul::Forward(q2d, k2d, preatt2d, factor);

        // softmax
        nn::Softmax::Forward(preatt2d_tensor, preatt_softmax2d_tensor);

        // att * V
        nn::MatMul::Forward(preatt_softmax2d, v2d_const, att2d);
    }
}

// LLM-CCCL Attention Implementation

// Calculate QK^T
cublasCheck(cublasSgemmStridedBatched(cublas_handle, CUBLAS_OP_T, CUBLAS_OP_N, T, T, HS, &alpha, k, HS, T * HS, q, HS, T * HS, &beta, preatt, T, T * T, B * NH));

// softmax
softmax_forward_kernel5<<<grid_size, softmax_block_size>>>(att, scale, preatt, B * NH, T);

// att * V
cublasCheck(cublasSgemmStridedBatched(cublas_handle, CUBLAS_OP_N, CUBLAS_OP_N, HS, T, T, &alpha, v, HS, T * HS, att, T, T * T, &beta, vaccum, HS, T * HS, B * NH));

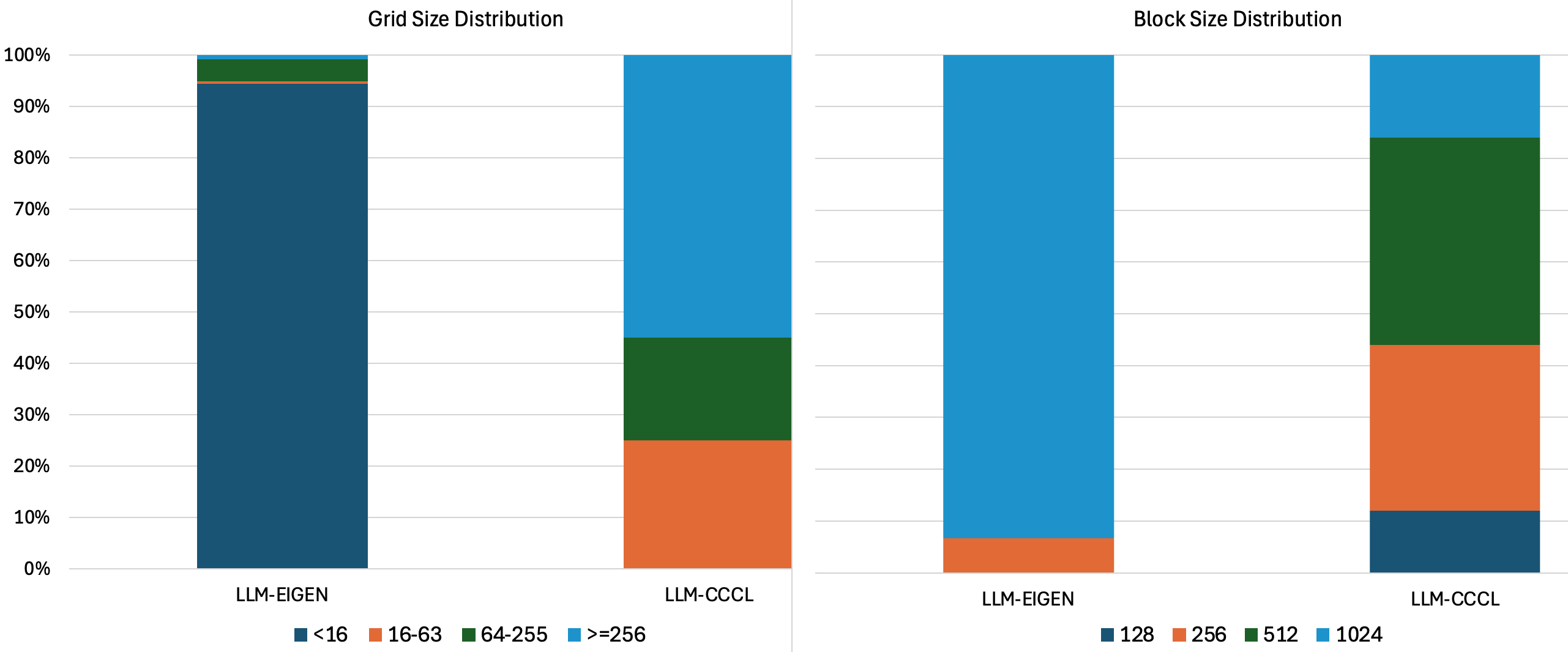

Another key aspect to understand when analyzing GPU kernels is the grid and block dimensions. The figure below show the distribution of grid and block sizes across all the kernels.

The results clearly show a dramatic difference in launch configuration granularity. The LLM-Eigen implementation tends to launch the vast majority of its kernels with only a handful of blocks (often single-digit count), whereas the CCCL implementation launches the majority of kernels with >= 256 blocks. The following table shows this glaring discrepency in another light:

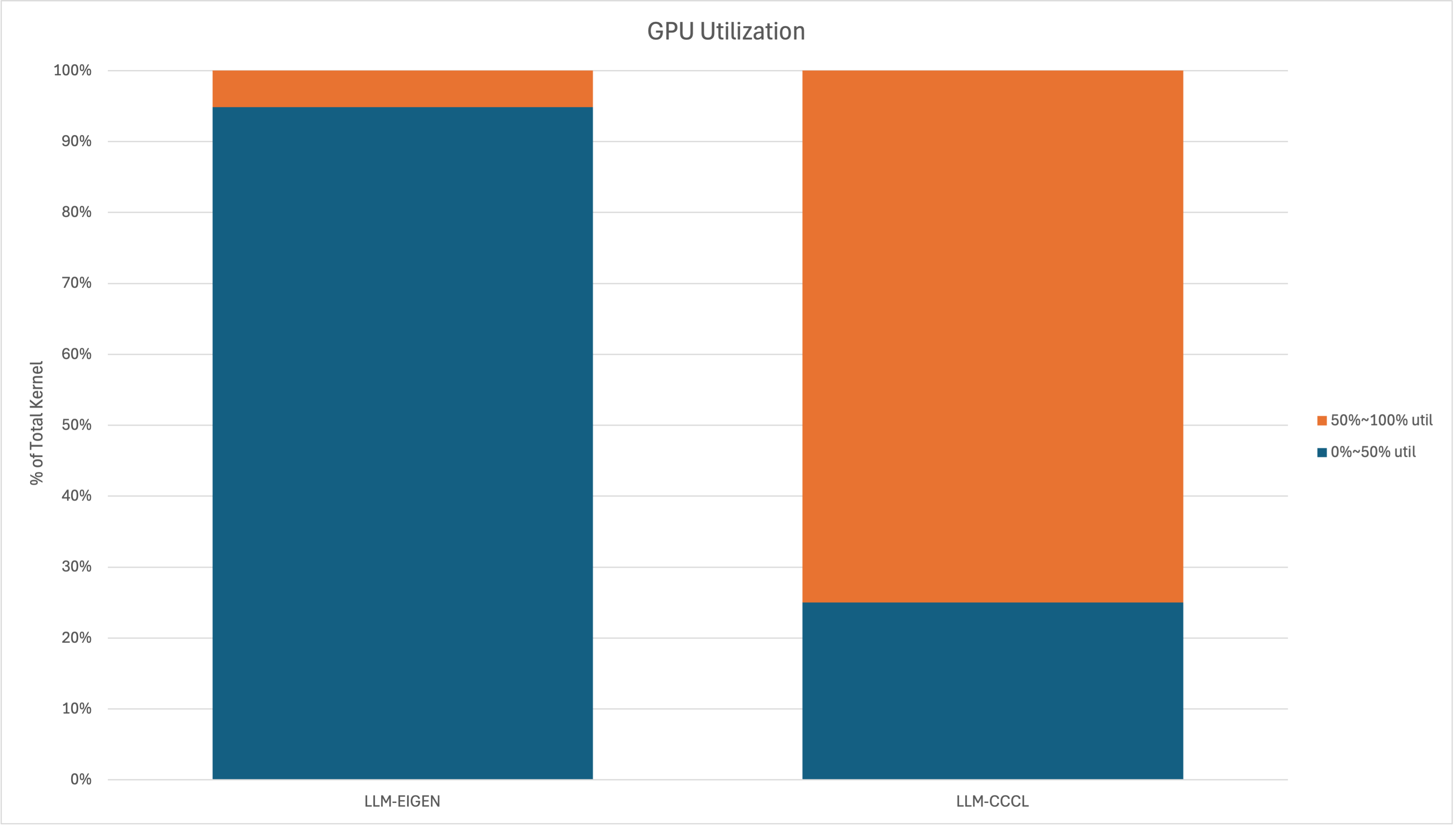

This has significant implications for GPU compute utilization. On an A100 with 108 SMs, small-grid kernels from the Eigen launching kernels with only a few blocks means that most SMs remain idle leading to severe underutilization of compute resources.

We define the SM Utilization of a GPU as: $\frac{\min(4, BlockSize/WarpSize)}{4}$

and GPU Utilization as: $\frac{\min(NumSM, GridSize)}{NumSM} \times SM Utilization$

Since each SM is subdivided into partitions (typically four sub-partitions in Ampere and Hopper), a minimum of four warps is generally required to maintain compute efficiency within a single SM. Similarly, to ensure all SMs are engaged across the entire GPU, the number of launched blocks should be at least equal to the number of SMs on the device. The formula above is a very simplified model of warp scheduling and SM occupancy, intentionally omitting many architectural complexities (e.g., register file pressure, shared-memory, ILP limits, warp divergence) to keep this blog focused and practical. In reality, optimal occupancy depends on the interaction of these factors, not just raw counts of blocks and warps. Achieving the absolute maximum FLOPs often requires the GPU utilization metric to be as close to $1.0$ (or 100%) as possible. It is critical to recognize that if the kernel is not compute-bound, driving utilization to ~1.0 may not increase performance and often lead to wasted energy.

The block-size distribution shows that most kernels are launched with large blocks, providing enough warps per block to keep the schedulers (and SM) busy. Given the simplified utilization model above, the primary factor determining performance then boils down to the grid size (the number of blocks). The GPU utilization chart below validates our earlier deduction: LLM-Eigen spends most of its time below 50% utilization, whereas in LLM-CCCL only about one quarter of kernels fall below 50%. This profound difference in hardware usage directly materializes as performance disparity, which we will now investigate in terms of real training time impacts.

Training Time

Measuring layer training time has two perspectives:

• GPU Time: This is the duration measured while the kernel(s) are actively executing on the GPU hardware. In our case here it is collected from hardware counters per kernel through CUPTI. For a range, we add the gpu__time_duration.max of all the kernels within it.
• Overall Time (Wall-Clock Time): This is the end-to-end time experienced by the user when the training process is executed from the CPU host. We use C++ std::chrono::high_resolution_clock::now() followed by a cudaDeviceSynchronize() to wrap the code snippet. It is a comprehensive metric comprising:
  • The GPU execution time,
  • The CPU execution time (host-side logic, data preparation like makespan, makeMatrix, synchronized cuda memory copy/memset, etc.), and
  • Various overheads, primarily kernel launch latency and synchronization cost.

Note that by default the kernel launch is asynchronous and launching a kernel will only push it into a queue but not execute it. As we perform device synchorization in the C++ marcro, our wall clock time includes the GPU execution time. Another popular way of measuring this time would be through cudaEventRecord mechanism.

The table below shows the GPU execution time alongwith the roofline as calculated above. All values are in micro seconds (us)

The results of our comparative analysis reveal several interesting and crucial performance characteristics:

1. The Gap Between Theory and Reality: While the Roofline Model clearly provides the theoretical performance bounds, real-world implementations are often significantly far from reaching that limit. Closing this gap requires targeted profiling and optimization.
2. Compute Efficiency in CCCL: The Attention and MLP blocks (backed by cuBLAS) achieve high compute utilization.
3. Performance Dominance of CCCL: With the exception of the Residual block, the CCCL implementation consistently outperforms the Eigen implementation by a huge margin across the entire LLM layer.
4. Eigen's Bottleneck: As anticipated, the LLM-Eigen implementation suffers from extremely low performance. This is a direct consequence of its abysmally low GPU utilization due to small grid size.

Now we analyze the overall timing (in micro-seconds) of the performance regions as presented in the table here. The GPU execution time is provided in paranthesis for ease of reference:

The results make it clear that the non-GPU portion of runtime is significant and cannot be ignored. To reach peak performance, system-level optimization spanning CPU, GPU, memory, storage, and network/data pipelines is often just as important as kernel efficiency. Focusing on the Attention block, Eigen’s many small kernel launches (versus CCCL’s single cuBLAS batched GEMM) amplify overheads, widening the gap from 48x on GPU time to 58x on overall wall-clock time.

The chart below shows how execution time is distributed across major performance regions.

As anticipated, the Attention block consumes the largest fraction of the total time, closely followed by the MLP block. For the Eigen implementation, Attention dominates: it consumes ~63% of GPU time, and—once kernel-launch overheads are included ~73% of overall time. LLM-CCCL's highly optimized Attention is far more efficient, consuming only about 35% to 40% of the overall execution time. One highly interesting point we must bring forth is the comparison against the Roofline Model. The model predicted that the MLP block should have a greater contribution to total time than the Attention block. However, for both implementations, the reality we measured shows that Attention consistently takes more time than MLP. We have not fully isolated the root cause, but we think Attention kernel launches, associated launch/synchronization overheads, and less favorable data movement, which together inflate Attention’s cost relative to the MLP.

Next, we take a deeper look at the memory behavior of the two implementations by analyzing metrics such as instruction mix, cache behavior, and memory access patterns.

Memory Performance Profile

L1, L2 and HBM accesses

As instructions execute in CUDA threads, their memory accesses may be coalesced and then propagated through the L1 and L2 caches before finally reaching HBM. The chart below shows the distribution of all relevant memory-related metrics across our partitioned performance regions. As can be seen, the Attention and MLP blocks consistently dominate most of these metrics, but they do so with some interesting differences, which we highlight below.

The Attention and MLP blocks collectively account for more than $95\%$ of all accesses to the memory hierarchy. The contribution from the next most important block, Layer Norm, appears meager, registering only $1\%$ to $3\%$ of total memory accesses. However, from an execution-time perspective, even this relatively small LayerNorm share ends up consuming $20–25\%$ of the total time. This discrepancy is caused by caching and sm occupancy. After the residual block, the output is fed into layer norm as input. During this process, the whole output of residual block resides in L2 and few additional loads from memory are required, leading to the low memory accesses in layer norm block. The high execution time attributes to the small grid size, which causes the steep increase of GPU time even the GPU is heavily underutilized.

If we compare Attention and MLP in terms of global loads, we see that Attention accounts for roughly half as many global loads as the MLP.

• The LLM-Eigen implementation consistently maintains this $\approx 50\%$ ratio for the Attention block's memory contribution over MLP across the entire hierarchy, from instruction count all the way down to the HBM reads.
• The LLM-CCCL version shows that the actual load instructions and total bytes are initially the same for both blocks. However, as the requests travel down the memory hierarchy, starting at the L1 and L2 caches, the contribution from the Attention block begins to reduce. It eventually culminates at the HBM level where the total number of HBM reads made by the Attention region is precisely half of the HBM reads made by the MLP region.

For global stores, the picture is slightly different. In the LLM-Eigen implementation, Attention’s SASS store instructions, L1 requests, and L2 accesses are all roughly 30% higher than those in the MLP region. In the LLM-CCCL implementation, the same quantities are about 10% higher for Attention than for MLP. However, at the HBM level, the pattern mirrors what we observed for loads: Attention ends up with roughly half as many HBM store transactions as the MLP region.

Crucially, this memory behavior directly contrasts with the actual GPU execution time due to compute boundness of these regions. As previously analyzed, the Attention block consumes approximately $20\%$ more execution time than the MLP block in the optimized LLM-CCCL implementation. For the LLM-Eigen implementation, this disparity is vastly exaggerated, with the Attention block consuming more than five times the execution time of the MLP block due to the significant overhead imposed by multiple kernel invocations and the resultant under-utilization that we have thoroughly documented throughout this blog.

Attention/MLP Factor	LLM-Eigen	LLM-CCCL
Global Load Instructions	0.5	1.1
Global Store Instructions	1.3	1.1
Global Load Bytes	0.5	1.0
Global Store Bytes	1.4	1.1
L1 Load Requests	0.5	0.7
L1 Store Requests	1.3	1.1
L1 Load Sectors	0.6	0.6
L1 Store Sectors	1.3	1.1
L2 Load Sectors	0.5	0.6
L2 Store Sectors	1.3	1.1
HBM Sectors Read	0.5	0.5
HBM Sectors Write	0.5	0.5
GPU Time	5.2	1.2
Overall Time	5.8	1.2

The table below compares the two implementations at the full-layer level. The LLM-Eigen implementation executes almost $9\times$ more load instructions than the LLM-CCCL implementation. This excessive instruction count results in a corresponding increase in cache activity: approximately $3.7\times$ more L1 requests and $1.3\times$ more L2 requests. Crucially, despite these massive differences in instructions and cache traffic, both implementations end up making the same total number of HBM read requests. For global stores, the picture is more balanced. Eigen issues only about 10% more SASS store instructions than CCCL. This difference amplifies somewhat at the cache levels (around 1.7x more L1/L2 store requests), but again, by the time we reach HBM, both implementations end up with nearly the same number of HBM store transactions.

Eigen/CCCL	Factor
Global Load Instructions	9.2
Global Store Instructions	1.1
Gobal Load Bytes	9.3
Gobal Store Bytes	1.1
L1 Load Requests	3.7
L1 Store Requests	1.1
L1 Load Sectors	5.1
L1 Store Sectors	2.1
L2 Load Sectors	1.3
L2 Store Sectors	1.7
HBM Sectors Read	1.0
HBM Sectors Write	0.9
GPU Time	31.0
Overall Time	28.0

HBM throughput

While NVIDIA GPUs expose a wide range of hardware counters for measuring DRAM/HBM bandwidth, we keep things simple in this blog by computing HBM bandwidth directly using the formula shown below. This provides a clear and easy to interpret metric across both LLM versions.

$Average HBM BW = \frac{(HBMReadSectors + HBMWriteSectors) \times SizeofSector}{GpuTime}$

The chart below shows the measured HBM bandwidth per performance region and the overall average bandwidth at the full layer.

Focusing first on the two main regions, Attention and MLP:

• In the Eigen implementation, the Attention region exhibits very low HBM bandwidth, reflecting the previously discussed inefficiencies.
• In contrast, the CCCL Attention implementation reaches an average of about 256 GB/s.
• For the MLP region, both implementations drive the memory system harder relatively speaking: Eigen reaches around 55 GB/s and CCCL–MLP reaches approximately 633 GB/s.

The Residual layers, theoretically being memory-bound, predictably end up extracting relatively higher bandwidth in both implementations because one of the two input matrices need to be loaded from memory. Similarly, LayerNorm in both cases shows very low HBM bandwidth because of L2 caching mentioned in previous sections. Finally, at the full LLM layer level, both implementations use far less HBM bandwidth than the hardware can provide: Eigen averages only about 10 GB/s, while CCCL reaches around 330 GB/s, still well below peak, but substantially better utilized than Eigen.

In future posts, we will dive deeper into NVIDIA’s built-in performance counters, accessible through CUPTI to analyze additional aspects of memory behavior, bandwidth utilization, and other low-level metrics.
